使用softmax回归进行mnist分类

发表于 更新于 分类于
本文字数： 16k 阅读时长 ≈ 30 分钟

MNIST是手写数字数据库，共有60000张训练图像和10000张测试图像，分别表示数字0-9

利用softmax回归模型进行mnist分类

numpy实现

首先需要进行数据库下载和解压，参考Python MNIST解压

加载数据集并将训练数据打乱

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
def load_data(shuffle=True):
    """
    加载mnist数据
    """
    train_dir = os.path.join(data_path, 'train')
    test_dir = os.path.join(data_path, 'test')

    x_train = []
    x_test = []
    y_train = []
    y_test = []
    train_file_list = []
    for i in cate_list:
        data_dir = os.path.join(train_dir, str(i))
        file_list = os.listdir(data_dir)
        for filename in file_list:
            file_path = os.path.join(data_dir, filename)
            train_file_list.append(file_path)

        data_dir = os.path.join(test_dir, str(i))
        file_list = os.listdir(data_dir)
        for filename in file_list:
            file_path = os.path.join(data_dir, filename)
            img = cv2.imread(file_path, cv2.IMREAD_GRAYSCALE)
            if img is not None:
                h, w = img.shape[:2]
                x_test.append(img.reshape(h * w))
                y_test.append(i)

    train_file_list = np.array(train_file_list)
    if shuffle:
        np.random.shuffle(train_file_list)

    for file_path in train_file_list:
        img = cv2.imread(file_path, cv2.IMREAD_GRAYSCALE)
        if img is not None:
            h, w = img.shape[:2]
            x_train.append(img.reshape(h * w))
            y_train.append(int(os.path.split(file_path)[0].split('/')[-1]))

    df = pd.DataFrame(y_train)
    df.columns = ['label']
    y_train_indicator = pd.get_dummies(df.label)

    return np.array(x_train), np.array(x_test), np.array(y_train), np.array(y_test), y_train_indicator.values

对数据集进行预处理，压缩到[-1,1]

1
2
3
4
# 计算均值，进行图像预处理
mu = np.mean(x_train, axis=0)
x_train = (x_train - mu) / 255
x_test = (x_test - mu) / 255

softmax回归numpy实现参考softmax回归

完整代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
# -*- coding: utf-8 -*-

# @Time    : 19-4-29 上午10:00
# @Author  : zj

import os
import cv2
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
import warnings

warnings.filterwarnings('ignore')

data_path = '../data/mnist/'

cate_list = list(range(10))


def load_data(shuffle=True):
    """
    加载mnist数据
    """
    train_dir = os.path.join(data_path, 'train')
    test_dir = os.path.join(data_path, 'test')

    x_train = []
    x_test = []
    y_train = []
    y_test = []
    train_file_list = []
    for i in cate_list:
        data_dir = os.path.join(train_dir, str(i))
        file_list = os.listdir(data_dir)
        for filename in file_list:
            file_path = os.path.join(data_dir, filename)
            train_file_list.append(file_path)

        data_dir = os.path.join(test_dir, str(i))
        file_list = os.listdir(data_dir)
        for filename in file_list:
            file_path = os.path.join(data_dir, filename)
            img = cv2.imread(file_path, cv2.IMREAD_GRAYSCALE)
            if img is not None:
                h, w = img.shape[:2]
                x_test.append(img.reshape(h * w))
                y_test.append(i)

    train_file_list = np.array(train_file_list)
    if shuffle:
        np.random.shuffle(train_file_list)

    for file_path in train_file_list:
        img = cv2.imread(file_path, cv2.IMREAD_GRAYSCALE)
        if img is not None:
            h, w = img.shape[:2]
            x_train.append(img.reshape(h * w))
            y_train.append(int(os.path.split(file_path)[0].split('/')[-1]))

    df = pd.DataFrame(y_train)
    df.columns = ['label']
    y_train_indicator = pd.get_dummies(df.label)

    return np.array(x_train), np.array(x_test), np.array(y_train), np.array(y_test), y_train_indicator.values


def linear(x, w):
    """
    线性操作
    :param x: 大小为(m,n+1)
    :param w: 大小为(n+1,k)
    :return: 大小为(m,k)
    """
    return x.dot(w)


def softmax(x):
    """
    softmax归一化计算
    :param x: 大小为(m, k)
    :return: 大小为(m, k)
    """
    x -= np.atleast_2d(np.max(x, axis=1)).T
    exps = np.exp(x)
    return exps / np.atleast_2d(np.sum(exps, axis=1)).T


def compute_scores(X, W):
    """
    计算精度
    :param X: 大小为(m,n+1)
    :param W: 大小为(n+1,k)
    :return: (m,k)
    """
    return softmax(linear(X, W))


def compute_loss(scores, indicator, W, la=2e-4):
    """
    计算损失值
    :param scores: 大小为(m, k)
    :param indicator: 大小为(m, k)
    :param W: (n+1, k)
    :return: (1)
    """
    cost = -1 / scores.shape[0] * np.sum(np.log(scores) * indicator)
    reg = la / 2 * np.sum(W ** 2)
    return cost + reg


def compute_gradient(scores, indicator, x, W, la=2e-4):
    """
    计算梯度
    :param scores: 大小为(m,k)
    :param indicator: 大小为(m,k)
    :param x: 大小为(m,n+1)
    :param W: (n+1, k)
    :return: (n+1,k)
    """
    return -1 / scores.shape[0] * x.T.dot((indicator - scores)) + la * W


def compute_accuracy(scores, Y):
    """
    计算精度
    :param scores: (m,k)
    :param Y: (m,1)
    """
    res = np.dstack((np.argmax(scores, axis=1), Y.squeeze())).squeeze()

    return len(list(filter(lambda x: x[0] == x[1], res[:]))) / len(res)


def draw(res_list, title=None, xlabel=None):
    if title is not None:
        plt.title(title)
    if xlabel is not None:
        plt.xlabel(xlabel)
    plt.plot(res_list)
    plt.show()


def compute_gradient_descent(batch_size=8, epoches=2000, alpha=2e-4):
    x_train, x_test, y_train, y_test, y_train_indicator = load_data(shuffle=True)

    m, n = x_train.shape[:2]
    k = y_train_indicator.shape[1]

    # 计算均值，进行图像预处理
    mu = np.mean(x_train, axis=0)
    x_train = (x_train - mu) / 255
    x_test = (x_test - mu) / 255

    # 初始化权重(n+1,k)
    W = 0.01 * np.random.normal(loc=0.0, scale=1.0, size=(n + 1, k))
    x_train = np.insert(x_train, 0, np.ones(m), axis=1)
    x_test = np.insert(x_test, 0, np.ones(x_test.shape[0]), axis=1)

    loss_list = []
    accuracy_list = []
    bestW = None
    bestA = 0
    range_list = np.arange(0, m - batch_size, step=batch_size)
    for i in range(epoches):
        for j in range_list:
            data = x_train[j:j + batch_size]
            labels = y_train_indicator[j:j + batch_size]

            # 计算分类概率
            scores = np.atleast_2d(compute_scores(data, W))
            # 更新梯度
            tempW = W - alpha * compute_gradient(scores, labels, data, W)
            W = tempW

            if j == range_list[-1]:
                loss = compute_loss(scores, labels, W)
                print(loss)
                loss_list.append(loss)

                accuracy = compute_accuracy(compute_scores(x_train, W), y_train)
                print('epoch: %d accuracy is %.2f %%' % (i + 1, accuracy * 100))
                accuracy_list.append(accuracy)
                if accuracy >= bestA:
                    bestA = accuracy
                    bestW = W.copy()
                break

    draw(loss_list, title='损失值')
    draw(accuracy_list, title='训练精度')

    test_accuracy = compute_accuracy(compute_scores(x_test, bestW), y_test)
    print('best train accuracy is %.2f %%' % (bestA * 100))
    print('test accuracy is %.2f %%' % (test_accuracy * 100))


if __name__ == '__main__':
    compute_gradient_descent(batch_size=128, epoches=10000)

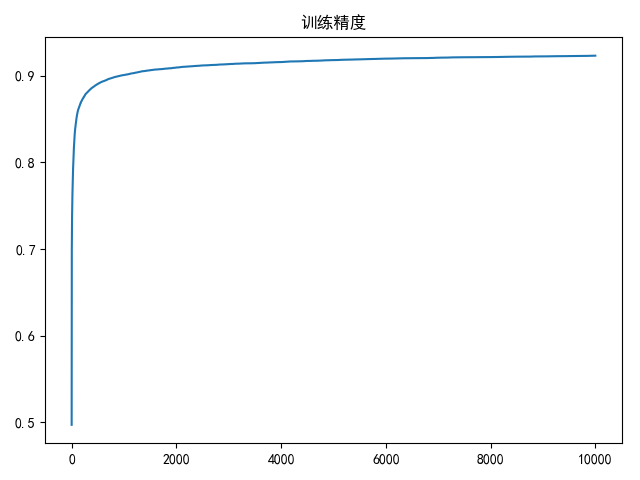

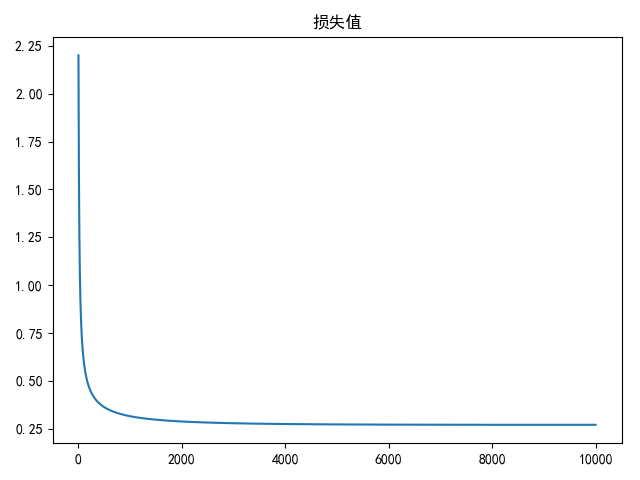

批量大小为128，学习率为2e-4，共训练1万次，结果如下：

1
2
best train accuracy is 92.33 %
test accuracy is 92.15 %

pytorch实现 - cpu训练

pytorch提供了类torchvision.datasets.ImageFolder用于自动加载排列如下的数据集：

1
2
3
4
5
6
7
root/dog/xxx.png
root/dog/xxy.png
root/dog/xxz.png

root/cat/123.png
root/cat/nsdf3.png
root/cat/asd932_.png

pytorch也提供了类torchvision.transforms用于数据格式转换以及数据处理

默认ImageFolder读取得到的是彩色PIL Image格式图像，需要转换成灰度Tensor格式

1
2
3
4
transform = transforms.Compose([
    transforms.Grayscale(),
    transforms.ToTensor()
])

使用ToTensor进行PIL Image或numpy.ndarray格式图像转换，从通道（H, W, C）、取值（0,255）转换为通道（C, H, W）、取值（0,1）

最后将数据集载入pytorch提供的DataLoader，用于批量处理和数据打乱

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
def load_data(batch_size=128, shuffle=True):
    """
    加载iris数据
    """
    train_dir = os.path.join(data_path, 'train')
    test_dir = os.path.join(data_path, 'test')

    transform = transforms.Compose([
        transforms.Grayscale(),
        transforms.ToTensor()
    ])

    train_data_set = ImageFolder(train_dir, transform=transform)
    test_data_set = ImageFolder(test_dir, transform=transform)

    return DataLoader(train_data_set, batch_size=batch_size, shuffle=shuffle), DataLoader(test_data_set,
                                                                                          batch_size=batch_size,
                                                                                          shuffle=shuffle)

完整代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
# -*- coding: utf-8 -*-

# @Time    : 19-4-28 下午7:55
# @Author  : zj

import torch
import torch.nn as nn
import torch.optim as optim
import torchvision.transforms as transforms
from torch.utils.data import DataLoader
from torchvision.datasets import ImageFolder
import os
import time
import matplotlib.pyplot as plt

import warnings

warnings.filterwarnings('ignore')

data_path = '../data/mnist/'

cate_list = list(range(10))


def load_data(batch_size=128, shuffle=True):
    """
    加载iris数据
    """
    train_dir = os.path.join(data_path, 'train')
    test_dir = os.path.join(data_path, 'test')

    transform = transforms.Compose([
        transforms.Grayscale(),
        transforms.ToTensor()
    ])

    train_data_set = ImageFolder(train_dir, transform=transform)
    test_data_set = ImageFolder(test_dir, transform=transform)

    return DataLoader(train_data_set, batch_size=batch_size, shuffle=shuffle), DataLoader(test_data_set,
                                                                                          batch_size=batch_size,
                                                                                          shuffle=shuffle)


def compute_accuracy(module, dataLoader):
    """
    计算精度
    :param module: 计算模型
    :param dataLoader: 数据加载器
    """
    accuracy = 0
    for i, items in enumerate(dataLoader, 0):
        data, labels = items
        data = data.reshape((data.size()[0], -1))
        scores = module.forward(data)

        predictions = torch.argmax(scores, dim=1)
        res = (predictions == labels.squeeze())
        accuracy += 1.0 * torch.sum(res).item() / scores.size()[0]
    return accuracy / dataLoader.__len__()


def draw(res_list, title=None, xlabel=None):
    if title is not None:
        plt.title(title)
    if xlabel is not None:
        plt.xlabel(xlabel)
    plt.plot(res_list)
    plt.show()


class SoftmaxModule(nn.Module):

    def __init__(self, inputs, outputs):
        super(SoftmaxModule, self).__init__()
        self.linear = nn.Linear(inputs, outputs)
        self.softmax = nn.LogSoftmax()

    def forward(self, input):
        x = self.linear.forward(input)
        x = self.softmax.forward(x)
        return x

    def getParameter(self):
        return self.linear.weight, self.linear.bias

    def setParameter(self, weight, bias):
        self.linear.weight = nn.Parameter(weight)
        self.linear.bias = nn.Parameter(bias)


def compute_gradient_descent(batch_size=8, epoches=2000, alpha=2e-4):
    train_loader, test_loader = load_data(batch_size=batch_size, shuffle=True)

    n = 784
    k = 10

    # softmax模型
    module = SoftmaxModule(n, k)
    # 损失函数
    criterion = nn.CrossEntropyLoss()
    # 优化器
    optimizer = optim.SGD(module.parameters(), lr=alpha)

    loss_list = []
    accuracy_list = []
    bestW = None
    bestB = None
    bestA = 0

    batch_len = train_loader.__len__()
    for i in range(epoches):
        start = time.time()
        for j, items in enumerate(train_loader, 0):
            data, labels = items
            data = data.reshape((data.size()[0], -1))

            scores = module.forward(data)
            loss = criterion(scores, labels.squeeze())
            optimizer.zero_grad()
            # 反向传播
            loss.backward()
            # 梯度更新
            optimizer.step()

            if j == (batch_len - 1):
                loss_list.append(loss.item())
        end = time.time()
        print('epoch： %d time: %.2f s' % (i + 1, end - start))
        if i % 20 == 19:  # 每个20次进行一次检测
            start = time.time()
            accuracy = compute_accuracy(module, train_loader)
            accuracy_list.append(accuracy)
            if accuracy >= bestA:
                bestA = accuracy
                bestW, bestB = module.getParameter()
            end = time.time()
            print('epoch: %d time: %.2f s accuracy: %.3f %%' % (i + 1, end - start, accuracy * 100))

    draw(loss_list, title='损失值')
    draw(accuracy_list, title='训练精度/20次')

    module.setParameter(bestW, bestB)
    test_accuracy = compute_accuracy(module, test_loader)

    print('best train accuracy is %.3f %%' % (bestA * 100))
    print('test accuracy is %.3f %%' % (test_accuracy * 100))


if __name__ == '__main__':
    start = time.time()
    compute_gradient_descent(batch_size=128, epoches=200)
    end = time.time()
    print('all train and test need time: %.2f minutes' % ((end - start) / 60.0))

使用8核CPU（Intel(R) Core(TM) i7-7700HQ CPU @ 2.80GHz）训练200次，需要54.97分钟，训练和测试精度如下：

1
2
3
best train accuracy is 87.474 %
test accuracy is 88.301 %
all train and test need time: 54.97 minutes

pytorch实现 - gpu训练

pytorch提供了gpu相关代码，用于加速训练过程

首先判断当前设备是否保存gpu

1
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")

然后使用to函数将模型、损失函数、数据和标签转入gpu进行训练

1
2
3
4
5
6
# softmax模型
module = SoftmaxModule(n, k).to(device=device)
# 损失函数
criterion = nn.CrossEntropyLoss().to(device=device)
...
data, labels = data.to(device=device), labels.to(device=device)

完整代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
# -*- coding: utf-8 -*-

# @Time    : 19-4-29 下午3:48
# @Author  : zj

import torch
import torch.nn as nn
import torch.optim as optim
import torchvision.transforms as transforms
from torch.utils.data import DataLoader
from torchvision.datasets import ImageFolder
import os
import time
import matplotlib.pyplot as plt

import warnings

warnings.filterwarnings('ignore')

data_path = '../data/mnist/'

cate_list = list(range(10))


def load_data(batch_size=128, shuffle=True):
    """
    加载iris数据
    """
    train_dir = os.path.join(data_path, 'train')
    test_dir = os.path.join(data_path, 'test')

    transform = transforms.Compose([
        transforms.Grayscale(),
        transforms.ToTensor()
    ])

    train_data_set = ImageFolder(train_dir, transform=transform)
    test_data_set = ImageFolder(test_dir, transform=transform)

    return DataLoader(train_data_set, batch_size=batch_size, shuffle=shuffle), DataLoader(test_data_set,
                                                                                          batch_size=batch_size,
                                                                                          shuffle=shuffle)


def compute_accuracy(module, dataLoader, device=torch.device('cpu')):
    """
    计算精度
    :param module: 计算模型
    :param dataLoader: 数据加载器

    """
    accuracy = 0
    for i, items in enumerate(dataLoader, 0):
        data, labels = items
        data = data.reshape((data.size()[0], -1))
        data, labels = data.to(device=device), labels.to(device=device)

        scores = module.forward(data)
        predictions = torch.argmax(scores, dim=1)
        res = (predictions == labels.squeeze())
        accuracy += 1.0 * torch.sum(res).item() / scores.size()[0]
    return accuracy / dataLoader.__len__()


def draw(res_list, title=None, xlabel=None):
    if title is not None:
        plt.title(title)
    if xlabel is not None:
        plt.xlabel(xlabel)
    plt.plot(res_list)
    plt.show()


class SoftmaxModule(nn.Module):

    def __init__(self, inputs, outputs):
        super(SoftmaxModule, self).__init__()
        self.linear = nn.Linear(inputs, outputs)
        self.softmax = nn.LogSoftmax()

    def forward(self, input):
        x = self.linear.forward(input)
        x = self.softmax.forward(x)
        return x

    def getParameter(self):
        return self.linear.weight, self.linear.bias

    def setParameter(self, weight, bias):
        self.linear.weight = nn.Parameter(weight)
        self.linear.bias = nn.Parameter(bias)


def compute_gradient_descent(batch_size=8, epoches=2000, alpha=2e-4):
    train_loader, test_loader = load_data(batch_size=batch_size, shuffle=True)

    n = 784
    k = 10

    device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")

    # softmax模型
    module = SoftmaxModule(n, k).to(device=device)
    # 损失函数
    criterion = nn.CrossEntropyLoss().to(device=device)
    # 优化器
    optimizer = optim.SGD(module.parameters(), lr=alpha)

    loss_list = []
    accuracy_list = []
    bestW = None
    bestB = None
    bestA = 0

    batch_len = train_loader.__len__()
    for i in range(epoches):
        start = time.time()
        for j, items in enumerate(train_loader, 0):
            data, labels = items
            data = data.reshape((data.size()[0], -1))
            data, labels = data.to(device=device), labels.to(device=device)

            scores = module.forward(data)
            loss = criterion(scores, labels.squeeze())
            optimizer.zero_grad()
            # 反向传播
            loss.backward()
            # 梯度更新
            optimizer.step()

            if j == (batch_len - 1):
                loss_list.append(loss.item())
        end = time.time()
        print('epoch： %d time: %.2f s' % (i + 1, end - start))
        if i % 20 == 19:  # 每个20次进行一次检测
            start = time.time()
            accuracy = compute_accuracy(module, train_loader, device)
            accuracy_list.append(accuracy)
            if accuracy >= bestA:
                bestA = accuracy
                bestW, bestB = module.getParameter()
            end = time.time()
            print('epoch: %d time: %.2f s accuracy: %.3f %%' % (i + 1, end - start, accuracy * 100))

    draw(loss_list, title='损失值')
    draw(accuracy_list, title='训练精度/20次')

    module.setParameter(bestW, bestB)
    test_accuracy = compute_accuracy(module, test_loader, device)

    print('best train accuracy is %.3f %%' % (bestA * 100))
    print('test accuracy is %.3f %%' % (test_accuracy * 100))


if __name__ == '__main__':
    start = time.time()
    compute_gradient_descent(batch_size=128, epoches=200)
    end = time.time()
    print('all train and test need time: %.2f minutes' % ((end - start) / 60.0))

使用GeForce GTX 1080训练200次，需要29.88分钟，训练和测试精度如下：

1
2
3
best train accuracy is 87.442 %
test accuracy is 88.439 %
all train and test need time: 29.88 minutes

使用torchvision内置mnist

torchvision模块中包含了许多常用数据集的加载类，其中就包括了MNIST

类torchvision.datasets.MNIST能够实现MNIST数据集的下载，保存和处理

实现如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
from torchvision import transforms
from torchvision import datasets
from torch.utils.data import DataLoader

def load_data(batch_size=128, shuffle=False):
    data_dir = '../data/mnist/'

    transform = transforms.Compose([
        transforms.Grayscale(),
        transforms.ToTensor()
    ])

    train_data_set = datasets.MNIST(root=data_dir, train=True, download=True, transform=transform)
    test_data_set = datasets.MNIST(root=data_dir, train=False, download=True, transform=transform)

    train_loader = DataLoader(train_data_set, batch_size=batch_size, shuffle=shuffle)
    test_loader = DataLoader(test_data_set, batch_size=batch_size, shuffle=shuffle)
    return train_loader, test_loader

相关阅读
