[数据集]cifar-100

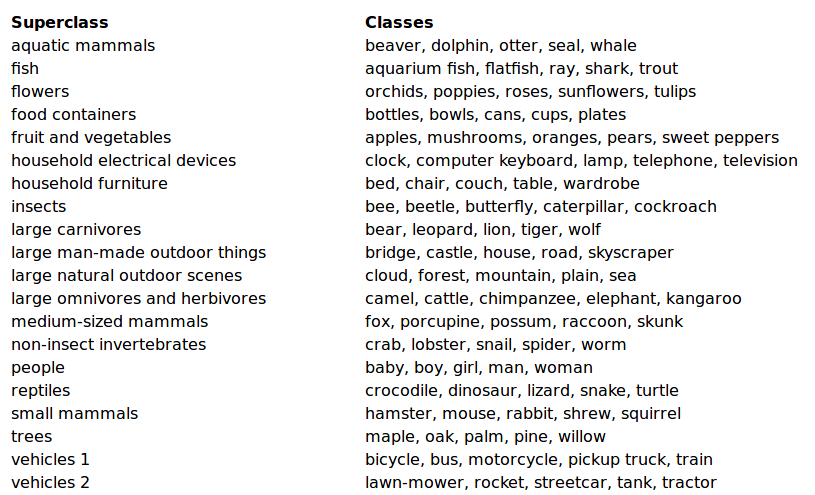

cifar-100数据集解析和cifar-10数据集解析类似,区别在于cifar-10020个超类(superclass),100个子类,所以每张图像有两个标签:超类标签(coarse label)和子类标签(fine label

文件解析

下载python压缩包,解压后里面有3个文件:meta/test/train

1
2
3
4
5
6
7
8
9
def print_keys():
data_list = ['meta', 'test', 'train']
data_dir = '/home/zj/data/cifar-100-python/'

for item in data_list:
data_path = os.path.join(data_dir, item)
data = unpickle(data_path)

print(item, list(data.keys()))

每个文件都是一个字典结构,依次输出文件的键

1
2
3
meta [b'fine_label_names', b'coarse_label_names']
test [b'filenames', b'batch_label', b'fine_labels', b'coarse_labels', b'data']
train [b'filenames', b'batch_label', b'fine_labels', b'coarse_labels', b'data']

在元信息文件、训练文件和测试文件中,相比cifar-10数据集多个一个标签信息

图像解析

按以下结构保存图像数据:

1
2
3
4
5
6
7
.
├── test
   ├── coarse_labels
   └── fine_labels
└── train
   ├── coarse_labels
   └── fine_labels

实现代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
def unpickle(file):
with open(file, 'rb') as fo:
dict = pickle.load(fo, encoding='bytes')
return dict


def write_img(data, coarse_labels, fine_labels, filenames, isTrain=True):
res_data_dir = '/home/zj/data/decompress_cifar_100'

if isTrain:
data_dir = os.path.join(res_data_dir, 'train')
else:
data_dir = os.path.join(res_data_dir, 'test')

if not os.path.exists(data_dir):
os.mkdir(data_dir)

N = len(coarse_labels)
for i in range(N):
coarse_cate_dir = os.path.join(data_dir, str(coarse_labels[i]))
if not os.path.exists(coarse_cate_dir):
os.mkdir(coarse_cate_dir)
fine_cate_dir = os.path.join(coarse_cate_dir, str(fine_labels[i]))
if not os.path.exists(fine_cate_dir):
os.mkdir(fine_cate_dir)
img_path = os.path.join(fine_cate_dir, str(filenames[i], encoding='utf-8'))

img = data[i].reshape(3, 32, 32)
img = np.transpose(img, (1, 2, 0))
img = cv2.cvtColor(img, cv2.COLOR_RGB2BGR)
cv2.imwrite(img_path, img)


def decompress_img():
data_list = ['test', 'train']
data_dir = '/home/zj/data/cifar-100-python/'

for item in data_list:
data_dir = os.path.join(data_dir, item)
di = unpickle(data_dir)

batch_label = str(di.get(b'batch_label'), encoding='utf-8')
filenames = di.get(b'filenames')
fine_labels = di.get(b'fine_labels')
coarse_labels = di.get(b'coarse_labels')
data = di.get(b'data')

if 'train' in batch_label:
write_img(data, coarse_labels, fine_labels, filenames)
else:
write_img(data, coarse_labels, fine_labels, filenames, isTrain=False)

图像展示

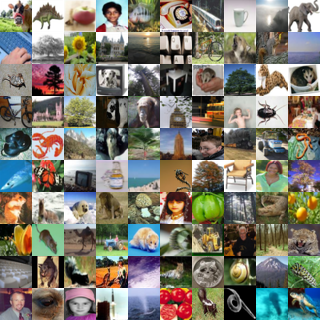

随机读取100张图像显示如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
if __name__ == '__main__':
data_dir = '/home/zj/da
文件解析

far-100-python/train'

di = unpickle(data_dir)
文件解析



batch_label = str(di.get(b'batch_label'), encoding='utf-8')
filenames = di.get(b'filenames')
fine_labels = di.get(b'fine_labels')
coarse_labels = di.get(b'coarse_labels')
data = di.get(b'data')

N = 10
W = 32
H = 32
ex = np.zeros((H * N, W * N, 3))
for i in range(N):
for j in range(N):
img = data[i * N + j].reshape(3, H, W)
img = np.transpose(img, (1, 2, 0))
img = cv2.cvtColor(img, cv2.COLOR_RGB2BGR)

ex[i * H:(i + 1) * H, j * W:(j + 1) * W] = img
cv2.imwrite('cifar-100.png', ex)
