LeNet5实现-pytorch

发表于 更新于 分类于
本文字数： 2k 阅读时长 ≈ 4 分钟

完整代码：PyNet/pytorch/lenet5_test.py

加载数据

pytorch提供模块torchvision，用于数据的加载、预处理和批量化

  • torchvision.datasets内置类MNIST用于mnist数据集下载和加载
  • torchvision.transforms对数据进行预处理
  • torchvision.DataLoader对数据进行批量化
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
def load_mnist_data(batch_size=128, shuffle=False):
    data_dir = '/home/zj/data/'

    transform = transforms.Compose([
        transforms.Grayscale(),
        transforms.Resize(size=(32, 32)),
        transforms.ToTensor(),
        transforms.Normalize(mean=(0.5,), std=(0.5,))
    ])

    train_data_set = datasets.MNIST(root=data_dir, train=True, download=True, transform=transform)
    test_data_set = datasets.MNIST(root=data_dir, train=False, download=True, transform=transform)

    train_loader = DataLoader(train_data_set, batch_size=batch_size, shuffle=shuffle)
    test_loader = DataLoader(test_data_set, batch_size=batch_size, shuffle=shuffle)

    return train_loader, test_loader

网络定义

LeNet-5模型定义参考卷积神经网络推导-单张图片矩阵计算

torch.nn模块实现了网络层类，包括卷积层（Conv2d）、最大池化层（MaxPool2d）、全连接层（Linear）和其他激活层

torch.nn模块提供functional类用于网络层类的实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
class LeNet5(nn.Module):

    def __init__(self):
        super(LeNet5, self).__init__()
        self.conv1 = nn.Conv2d(in_channels=1, out_channels=6, kernel_size=5, stride=1, padding=0, bias=True)
        self.conv2 = nn.Conv2d(in_channels=6, out_channels=16, kernel_size=5, stride=1, padding=0, bias=True)
        self.conv3 = nn.Conv2d(in_channels=16, out_channels=120, kernel_size=5, stride=1, padding=0, bias=True)

        self.pool = nn.MaxPool2d((2, 2), stride=2)

        self.fc1 = nn.Linear(in_features=120, out_features=84, bias=True)
        self.fc2 = nn.Linear(84, 10, bias=True)

    def forward(self, input):
        x = self.pool(F.relu(self.conv1(input)))
        x = self.pool(F.relu(self.conv2(x)))
        x = self.conv3(x)

        x = x.view(-1, self.num_flat_features(x))

        x = F.relu(self.fc1(x))
        return self.fc2(x)

    def num_flat_features(self, x):
        size = x.size()[1:]  # all dimensions except the batch dimension
        num_features = 1
        for s in size:
            num_features *= s
        return num_features

训练

训练参数如下

  1. 学习率lr = 1e-3
  2. 批量大小batch_size = 128
  3. 迭代次数epochs = 500

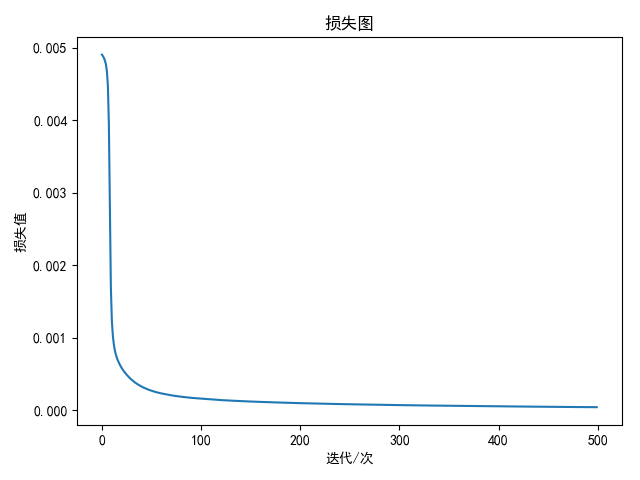

训练结果

训练时间

CPU GPU 单次迭代时间
8核 Intel(R) Core(TM) i7-7700HQ CPU @ 2.80GHz GeForce 940MX 约13秒

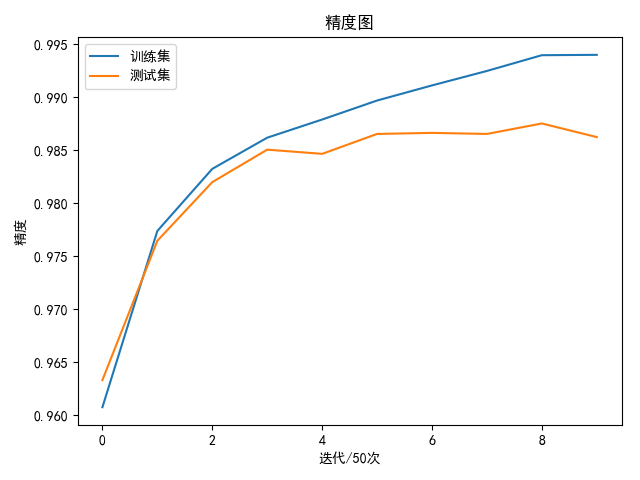

迭代500次训练结果

训练集精度 测试集精度
99.40% 98.63%
