softmax分类器

发表于 更新于 分类于
本文字数： 8k 阅读时长 ≈ 14 分钟

模仿线性SVM分类器实现softmax分类器

分类器实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
# -*- coding: utf-8 -*-

# @Time    : 19-7-17 下午7:45
# @Author  : zj


import numpy as np


class SoftmaxClassifier(object):

    def __init__(self):
        self.W = None
        self.b = None

        self.lr = None
        self.reg = None

    def train(self, X, y, learning_rate=1e-3, reg=1e-5, num_iters=100, batch_size=200, verbose=False):
        """
        Inputs:
        - X: A numpy array of shape (N, D) containing training data; there are N
          training samples each of dimension D.
        - y: A numpy array of shape (N,) containing training labels; y[i] = c
          means that X[i] has label 0 <= c < C for C classes.
        - learning_rate: (float) learning rate for optimization.
        - reg: (float) regularization strength.
        - num_iters: (integer) number of steps to take when optimizing
        - batch_size: (integer) number of training examples to use at each step.
        - verbose: (boolean) If true, print progress during optimization.

        Outputs:
        A list containing the value of the loss function at each training iteration.
        """
        self.lr = learning_rate
        self.reg = reg

        num_train, dim = X.shape
        num_classes = np.max(y) + 1  # assume y takes values 0...K-1 where K is number of classes
        if self.W is None:
            # lazily initialize W
            self.W = 0.001 * np.random.randn(dim, num_classes)
            self.b = np.zeros((1, num_classes))

        # Run stochastic gradient descent to optimize W
        loss_history = []
        for it in range(num_iters):
            indices = np.random.choice(num_train, batch_size)
            X_batch = X[indices]
            y_batch = y[indices]

            # evaluate loss and gradient
            loss, dW, db = self.loss(X_batch, y_batch, reg)
            loss_history.append(loss)

            self.W -= learning_rate * dW
            self.b -= learning_rate * db

            if verbose and it % 100 == 0:
                print('iteration %d / %d: loss %f' % (it, num_iters, loss))

        return loss_history

    def predict(self, X):
        """
        Use the trained weights of this linear classifier to predict labels for
        data points.

        Inputs:
        - X: A numpy array of shape (N, D) containing training data; there are N
          training samples each of dimension D.

        Returns:
        - y_pred: Predicted labels for the data in X. y_pred is a 1-dimensional
          array of length N, and each element is an integer giving the predicted
          class.
        """
        scores = self.softmax(X)
        exp_scores = np.exp(scores)
        probs = exp_scores / np.sum(exp_scores, axis=1, keepdims=True)

        y_pred = np.argmax(probs, axis=1)
        return y_pred

    def loss(self, X_batch, y_batch, reg, delta=1):
        """
        Compute the loss function and its derivative.
        Subclasses will override this.

        Inputs:
        - X_batch: A numpy array of shape (N, D) containing a minibatch of N
          data points; each point has dimension D.
        - y_batch: A numpy array of shape (N,) containing labels for the minibatch.
        - reg: (float) regularization strength.

        Returns: A tuple containing:
        - loss as a single float
        - gradient with respect to self.W; an array of the same shape as W
        """
        num_train = X_batch.shape[0]

        scores = self.softmax(X_batch)
        exp_scores = np.exp(scores)
        probs = exp_scores / np.sum(exp_scores, axis=1, keepdims=True)

        data_loss = -1.0 / num_train * np.sum(np.log(probs[range(num_train), y_batch]))
        reg_loss = 0.5 * reg * np.sum(self.W ** 2)

        loss = data_loss + reg_loss

        dscores = scores
        dscores[range(num_train), y_batch] -= 1
        dscores /= num_train
        dW = X_batch.T.dot(dscores) + reg * self.W
        db = np.sum(dscores)

        return loss, dW, db

    def softmax(self, x):
        """
        :param x: A numpy array of shape (N, D)
        :param w: A numpy array of shape (D)
        :param b: A numpy array of shape (1)
        :return: A numpy array of shape (N)
        """
        z = x.dot(self.W) + self.b
        z -= np.max(z, axis=1, keepdims=True)
        return z

实验

使用交叉验证方法寻找最优的学习率和正则化强度组合

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
# -*- coding: utf-8 -*-

# @Time    : 19-7-17 下午8:00
# @Author  : zj

from builtins import range
from softmax_classifier import SoftmaxClassifier
import pandas as pd
import numpy as np
import math
from sklearn import utils
from sklearn.model_selection import train_test_split
import matplotlib.pyplot as plt
import warnings

warnings.filterwarnings("ignore")


def load_iris(iris_path, shuffle=True, tsize=0.8):
    """
    加载iris数据
    """
    data = pd.read_csv(iris_path, header=0, delimiter=',')

    if shuffle:
        data = utils.shuffle(data)

    species_dict = {
        'Iris-setosa': 0,
        'Iris-versicolor': 1,
        'Iris-virginica': 2
    }
    data['Species'] = data['Species'].map(species_dict)

    data_x = np.array(
        [data['SepalLengthCm'], data['SepalWidthCm'], data['PetalLengthCm'], data['PetalWidthCm']]).T
    data_y = np.array(data['Species'])

    x_train, x_test, y_train, y_test = train_test_split(data_x, data_y, train_size=tsize, test_size=(1 - tsize),
                                                        shuffle=False)

    return np.array(x_train), np.array(x_test), np.array(y_train), np.array(y_test)


def load_german_data(data_path, shuffle=True, tsize=0.8):
    data_list = pd.read_csv(data_path, header=None, sep='\s+')

    data_array = data_list.values
    height, width = data_array.shape[:2]
    data_x = data_array[:, :(width - 1)]
    data_y = data_array[:, (width - 1)]

    x_train, x_test, y_train, y_test = train_test_split(data_x, data_y, train_size=tsize, test_size=(1 - tsize),
                                                        shuffle=shuffle)

    y_train = np.array(list(map(lambda x: 1 if x == 2 else 0, y_train)))
    y_test = np.array(list(map(lambda x: 1 if x == 2 else 0, y_test)))

    return x_train, x_test, y_train, y_test


def compute_accuracy(y, y_pred):
    num = y.shape[0]
    num_correct = np.sum(y_pred == y)
    acc = float(num_correct) / num
    return acc


def cross_validation(x_train, y_train, x_val, y_val, lr_choices, reg_choices, classifier=SoftmaxClassifier):
    results = {}
    best_val = -1  # The highest validation accuracy that we have seen so far.
    best_svm = None  # The LinearSVM object that achieved the highest validation rate.

    for lr in lr_choices:
        for reg in reg_choices:
            svm = classifier()

            svm.train(x_train, y_train, learning_rate=lr, reg=reg, num_iters=2000, batch_size=100, verbose=True)
            y_train_pred = svm.predict(x_train)
            y_val_pred = svm.predict(x_val)

            train_acc = np.mean(y_train_pred == y_train)
            val_acc = np.mean(y_val_pred == y_val)

            results[(lr, reg)] = (train_acc, val_acc)
            if best_val < val_acc:
                best_val = val_acc
                best_svm = svm

    return results, best_svm, best_val


def plot(results):
    # Visualize the cross-validation results
    x_scatter = [math.log10(x[0]) for x in results]
    y_scatter = [math.log10(x[1]) for x in results]

    # plot training accuracy
    marker_size = 100
    colors = [results[x][0] for x in results]
    plt.subplot(2, 1, 1)
    plt.scatter(x_scatter, y_scatter, marker_size, c=colors, cmap=plt.cm.coolwarm)
    plt.colorbar()
    plt.xlabel('log learning rate')
    plt.ylabel('log regularization strength')
    plt.title('training accuracy')

    # plot validation accuracy
    colors = [results[x][1] for x in results]  # default size of markers is 20
    plt.subplot(2, 1, 2)
    plt.scatter(x_scatter, y_scatter, marker_size, c=colors, cmap=plt.cm.coolwarm)
    plt.colorbar()
    plt.xlabel('log learning rate')
    plt.ylabel('log regularization strength')
    plt.title('validation accuracy')
    plt.show()


if __name__ == '__main__':
    iris_path = '/home/zj/data/iris-species/Iris.csv'
    x_train, x_test, y_train, y_test = load_iris(iris_path, shuffle=True, tsize=0.8)

    # data_path = '/home/zj/data/german/german.data-numeric'
    # x_train, x_test, y_train, y_test = load_german_data(data_path, shuffle=True, tsize=0.8)

    x_train = x_train.astype(np.double)
    x_test = x_test.astype(np.double)
    mu = np.mean(x_train, axis=0)
    var = np.var(x_train, axis=0)
    eps = 1e-8
    x_train = (x_train - mu) / np.sqrt(var + eps)
    x_test = (x_test - mu) / np.sqrt(var + eps)

    lr_choices = [1e-4, 2.5e-4, 5e-4, 7.5e-4, 1e-3, 2.5e-2]
    reg_choices = [7.5e-6, 1e-5, 2.5e-5, 5e-5, 7.5e-5, 1e-4]
    results, best_svm, best_val = cross_validation(x_train, y_train, x_test, y_test, lr_choices, reg_choices)

    plot(results)

    for k in results.keys():
        lr, reg = k
        train_acc, val_acc = results[k]
        print('lr = %f, reg = %f, train_acc = %f, val_acc = %f' % (lr, reg, train_acc, val_acc))

    print('最好的设置是： lr = %f, reg = %f' % (best_svm.lr, best_svm.reg))
    print('最好的测试精度： %f' % best_val)

批量大小为100，共迭代2000次

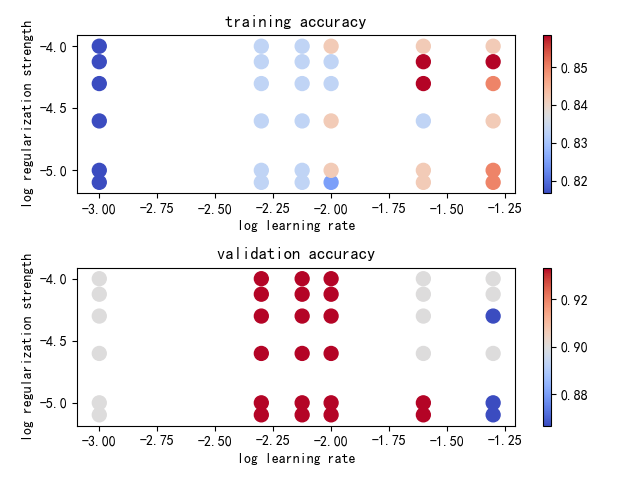

Iris数据集测试结果如下：

1
2
最好的设置是： lr = 0.005000, reg = 0.000008
最好的测试精度： 0.933333

德国信用卡数据集测试结果如下：

1
2
最好的设置是： lr = 0.050000, reg = 0.000075
最好的测试精度： 0.765000

2000次迭代后的测试结果，与KNN分类器和线性SVM分类器比较结果如下：

IrisGerman data
KNN93.33%73.5%
SVM80%75%
SVM93.33%76.5%
